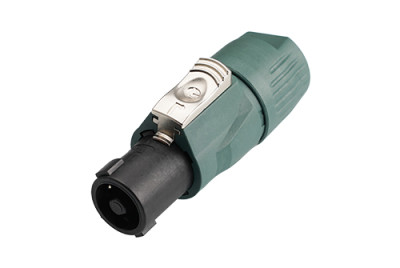

RCLS4F-G
4 pole loudspeaker cable connector with latch lock, chuck and bushing, bulk and single packed
Selection of topics
Features & Benefits
Downloads
Technical Information
Features & Benefits
- updated exterior design of REAN product language
- new latch system with better convenient unlocking experience
- VO plastic material ensure safety and compliance
- UL/VDE fully certified
Article Variations
| Article Name | Details | Packaging |
| RCLS4F-G-000-0 | Female, green housing | BULK |
| RCLS4F-G-000-1 | Female, green housing | Plastic bag |
| RCLS4F-G-001-0 | Female, blue housing | BULK |
| RCLS4F-G-001-1 | Female, blue housing | Plastic bag |
Technical Information
| Product | |
| Title | RCLS4F-G-000/1 |
| Connection type | Loudspeaker |
| Gender | Female |
| Electrical | |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | > 1 GΩ (Initial) |
| Insulation resistance | 4 kV dc |
| Rated current per contact | 30 A |
| Rated voltage | 250 VAC |
| Mechanical | |
| Cable O.D. | 6.0 - 10.0mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 12 AWG / 4mm² |
| Material | |
| Shell | PA |
| Contacts | Bronze |
| Contact plating | Silver |
| Locking element | Zinc Alloy |
| Chuck | PA |
