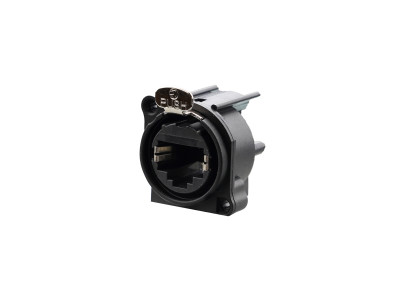

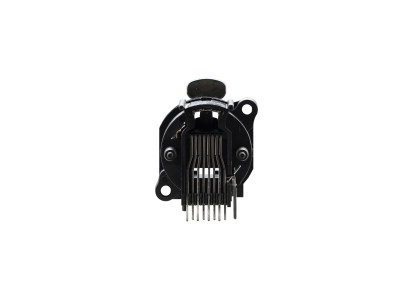

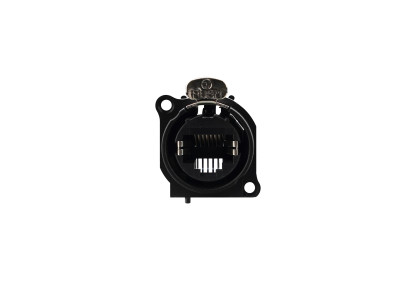

RRE8F-A-000
Horizonal PCB mount RJ45 receptacle, A-Series cutout with latch lock
Selection of topics
Features & Benefits
Downloads
Technical Information
Features & Benefits
- Cost effective Ethernet Chassis solution
- CAT5E performance
- Industrial standard A type panel cut-out & PCB mounting
Technical Information
| Product | |
| Title | RRE8F-A-000 |
| Connection type | Ethernet |
| Gender | Female |
| Electrical | |
| Contact resistance | <50 mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Rated voltage | ≤ 57 V |
| Transmission performance | CAT5e |
| Mechanical | |
| Insertion force | ≤ 40 N |
| Withdrawal force | ≤ 40 N |
| Lifetime | 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Chassis shape | A |
| Mounting | A-Screw |
| Material | |
| Contacts | Au |
| Locking element | Bronze |
| Shell | Plastic |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
