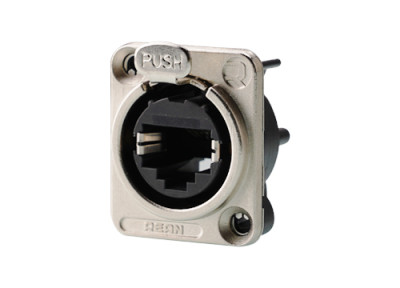

RRE8F-D-002-0
RJ45 Vertical PCB mount receptacle, D-shape metal flange with the latch lock
Selection of topics
Features & Benefits
Downloads
Technical Information
Features & Benefits
- D type standard flange
- Reliable latch lock system
Technical Information
| Product | |
| Title | RRE8F-D-002-0 |
| Gender | female |
| Electrical | |
| Contact resistance | <10 mΩ |
| Dielectric strength | 1 kVdc |
| Frequency range | 1 – 100 MHz |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Rated voltage | < 50 V |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Power over Etherne | PoE+ acc. IEEE 802.3at |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 4 mm 0.16' |
| Wiring | Vertical PCB mount |
| Locking device | Latch lock |
| Chassis shape | D |
| Material | |
| Contact plating | Au |
| Contacts | Bronze |
| Insert | PBTP 15 % GR |
| Shell | Zinc alloy |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL94 V-0 |
| Temperature range | -30 °C to +80 °C |
