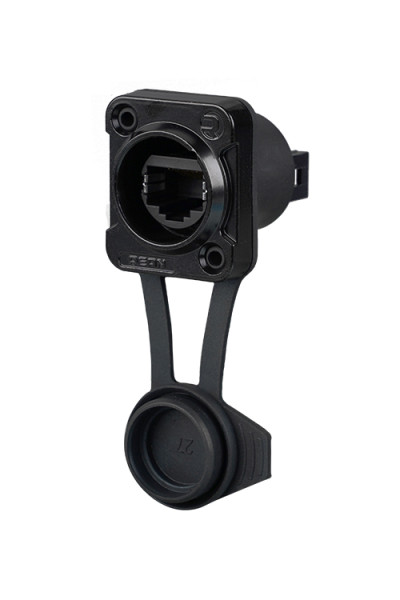

RRE8F-Z-112S

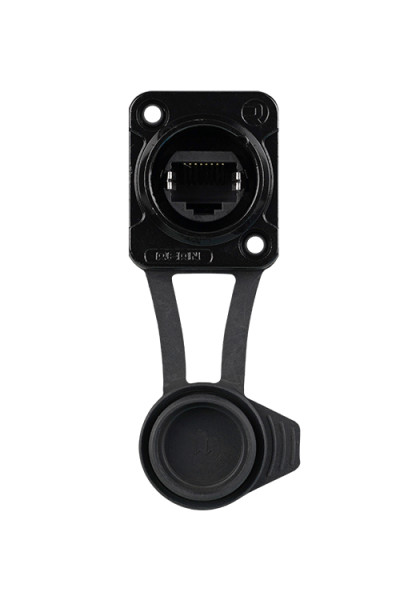

RJ45 Horn type receptacle，D-shape metal flange without latch lock
IP65 rating to optimally protect your device or equipment from water ingress. Airtight feature protect your device from Air ingress.
Selection of topics
Features & Benefits
Downloads
Technical Information
Features & Benefits
- Robust design to withstand harsh environments and frequent use, ensuring long-lasting performance
- The release latch function on the connector side makes it easy to connect and disconnect the RJ45 system, saving time and effort
- IP65 protection when mating with REAN Z series corresponding Ethernet connector or rubber cap closed
- UL94 V-0 rated materials
- Rugged diecast shell with fashionable black plating
- Sealed chassis protects internal components and host devices from water damage, ensuring reliable and cost-effective performance in challenging environments
Article Variations
| Article Name | Details | Packaging |
| RRE8F-Z-112S-0 | Black plated housing, horn type receptacle | BULK |
Technical Information
| Product | |
| Title | RRE8F-Z-112S |
| Connection type | Ethernet Receptacle |
| Gender | Female |
| Electrical | |
| Contact resistance | <100 mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Insertion force | ≤ 80 N |
| Withdrawal force | ≤ 30 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | 10mm |
| Locking device | Latch lock |
| Wiring | 2.54mm Box Header 2x4 PIN |
| Chassis shape | D |
| Material | |
| Contact plating | Gold plating |
| Contacts | Bronze |
| Shell | Zinc |
| Insert | PA66 |
| Shell plating | Black plating |
| Environmental | |
| Flammability | UL94 V-0 |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Protection class | IP65 and Airtight |
| Temperature range | -30 °C to +80 °C |
