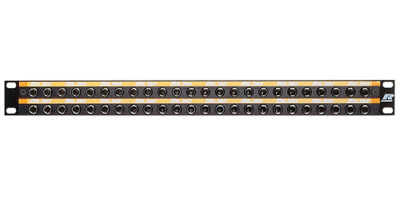

LF48-1O
48 way Longframe B-Gauge Patch Panel, black front panel, extra rugged jack sockets which allow customized normalling
Selection of topics
Features & Benefits
Downloads
Technical Information
Accessories
Features & Benefits
- 48 way Longframe B-Gauge patch panel
- Accepts both European BPO 316 and US MIL-P-642/2 style phono plugs

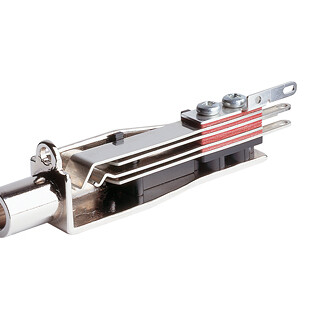

- 2 rows of 24 LF501 jack connectors
- Jack designed from rigid nickel-plated die-cast aluminium with nickel-silver spring contacts
- Reliable support for connecting looms by steel lacing bar
Downloads
Technical Information
| Product | |
| Title | LF48-1O |
| Connection Type | Patch Panel |
| Electrical | |
| Signal Type | AES/EBU Signals (digital) |
| Contact resistance | < 20 mΩ |
| Contact resistance | < 15 mΩ |
| Dielectric strength | > 0.5 kVdc |
| Frequencyrange | DC to > 50 MHz |
| Insulation resistance | > 1 GΩ @ 500 V dc |
| Channel separation | > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated |
| Handles Phantom Power | Yes |
| Mechanical | |
| Insertion force | < 25 N |
| Withdrawal force | > 10 N |
| Lifetime | > 20000 mating cycles |
| Wiresize | |
| Locking device | Retention spring |
| Material | |
| Contacts | Pallatium plated (Switch contacts) |
| Shell | diecast Al (Jacks) |
| Shell plating | Black front panel |
| Front panel | anodised Al |
| Lacing bar | powder coated steel |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
