NYS-SSR-8

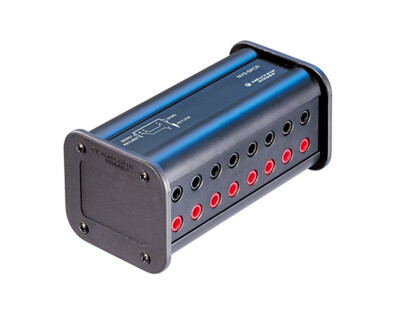

1/4'' patch box with 8 send/return moduls (split print)
Patch box NYS-SSR-8 comprises NYS-SPCR1 modules with switching contacts. Solution for insert jack of mixing consoles, Split print by-passes the use of a special wired Y-Cable.
Selection of topics
Downloads
Technical Information
Technical Information
| Product | |
| Title | NYS-SSR-8 |
| Connection Type | Patch Box |
| Electrical | |
| Signal Type | AES/EBU Signals (digital) |
| Contact resistance | - mΩ depends on mated connector |
| Dielectric strength | 0.5 kVdc |
| Insulation resistance | ≥ 1 GΩ |
| Rated current per contact | - A depends on mated connector |
| Channel separation | > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated |
| Handles Phantom Power | Yes |
| Mechanical | |
| Insertion force | ≤ 10 N |
| Withdrawal force | ≥ 10 N |
| Lifetime | > 10000 mating cycles |
| Wiresize | |
| Locking device | Retention spring |
| Material | |
| Contacts | Bronze, tin plated |
| Shell | ABS |
| End pieces | Thermoplastic |
| Environmental | |
| Temperature range | -25 °C to +70 °C |
