Article Variations
| Article Name | Details | Packaging |

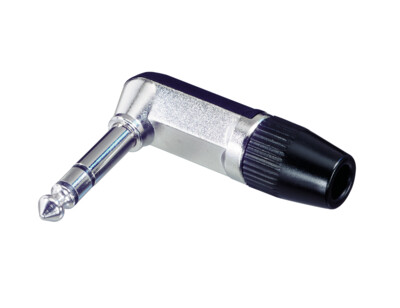

| NYS208 | silvery handle, black plastic cover and bushing |
Technical Information
| Product | |
| Title | NYS208 |
| Connection Type | Plug |
| Electrical | |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥200 MΩ(Initial) |
| Dielectric Strength | 0.5 KVdc 50HZ |
| Mechanical | |
| Insertion and Withdrawal Force | ≤60N |
| Lifetime | >1,000 Mating Cycles |
| Material | |
| Inner | Steel |
| Tip | Brass |
| Bushing | PA66+30%GF |
| Insulation | PVC |
| Front Shell | Zinc |
| Insulation | PA66+30%GF |
| Soldering Contact | Brass |
| Cover(Black) | PA6+30%GF |
| Bushing(Black) | POM |
| Inner | Brass |
| Bushing | PA66+30%GF |
| Sleeve | Brass |
| Insulation | PVC |
| Cable Clamp | Steel |
| Tip | Nickel Plating |
| Front Shell | Nickel Plating |
| Sleeve | Nickel Plating |
| Inner | Nickel Plating |
| Soldering Contact | Tin and Cer |
| Cable Clamp | Tin and Cer |
