NYS216
3 pole horizontal 1/4'' jack, all contacts switched, plastic housing with nut and washer
Selection of topics
Downloads
Technical Information
Downloads
Article Variations
| Article Name | Details | Packaging |

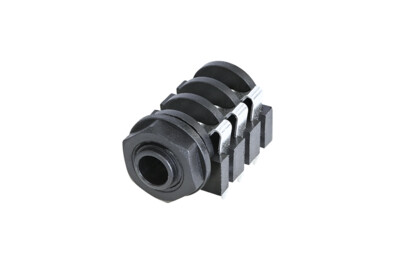

| NYS216 | Stereo 3 pole, 8.2 mm distance to PCB | BULK |

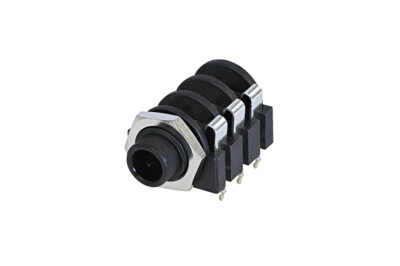

| NYS216H | Stereo 3 pole, half threaded nose, 8.2 mm distance to PCB | BULK |

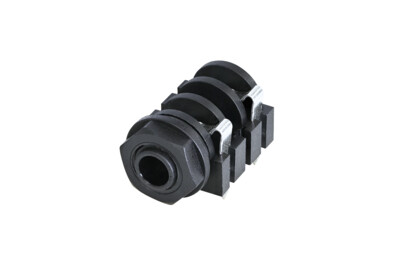

| NYS2162 | Mono 2 pole, 8.2 mm distance to PCB | BULK |
| NYS2162-U | Mono 2 pole, 8.2 mm distance to PCB, WASHER and NUT not assembled | BULK |

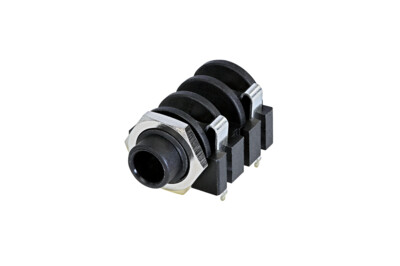

| NYS2162H | Mono 2 pole half threaded nose, 8.2 mm distance to PCB | BULK |

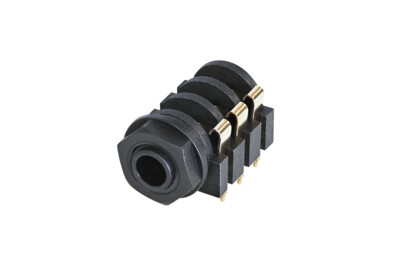

| NYS216G | Stereo 3 pole, gold contacts, 8.2 mm distance to PCB | BULK |
| NYS216-U | Stereo 3 pole, 8.2 mm distance to PCB, WASHER and NUT not assembled | BULK |
Technical Information
| Product | |
| Title | NYS216 |
| Connection Type | Jack |
| Gender | female |
| Electrical | |
| Dielectric strength | 0.5 kVdc |
| Insulation resistance | ≥ 1 GΩ |
| Rated current | depends on mated connector |
| Contact resistance | depends on mated connector |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≥ 10 N |
| Lifetime | 1000 mating cycles |
| Wiresize |
| Material | |
| Contact plating | SnCe |
| Contacts | Brass (CuZn39Pb3) |
| Shell / Insulation | Thermoplastic |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +70 °C |
