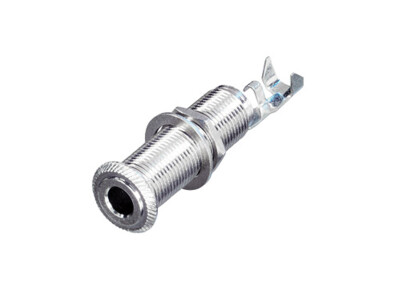

NYS2203
3 pole 1/4'' jack for thick panels, long-threaded bushing with washer and nut, full metal
Selection of topics
Downloads
Technical Information
Technical Information
| Product | |
| Title | NYS2203 |
| Connection Type | Jack |
| Gender | male |
| Electrical | |
| Dielectric strength | 0.5 kVdc |
| Insulation resistance | ≥ 1 GΩ |
| Rated current | depends on mated connector |
| Contact resistance | depends on mated connector |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≥ 10 N |
| Lifetime | 1000 mating cycles |
| Wiresize |
| Material | |
| Contact plating | SnCe |
| Contacts | Brass (CuZn39Pb3) |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Nickel |
| Insulation | Thermoplastic |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +70 °C |
