NYS225
Mono 2 pole plug with anti-kink boot and large metal handle for speaker cables
Selection of topics
Downloads
Technical Information
Downloads
Article Variations
| Article Name | Details | Packaging |

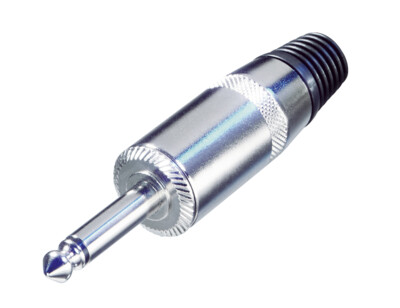

| NYS225 | silvery handle | |

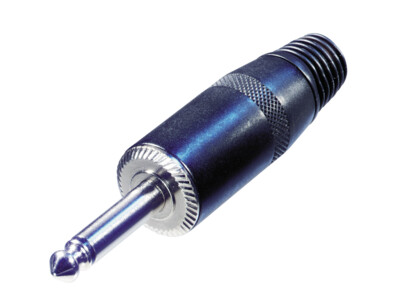

| NYS225B | black handle | |
| NYS225L | silvery handle, large cable outlet (9 mm) | |

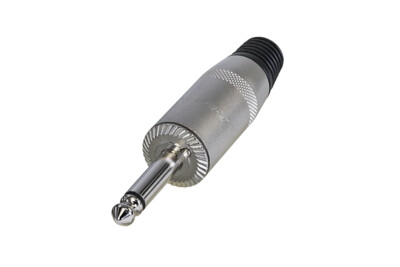

| NYS225S | silvery handle, tip switched to ground if not inserted (silent) for guitar cables |
Technical Information
| Product | |
| Title | NYS225 |
| Connection Type | 1/4" Plugs & Jacks |
| Electrical | |
| Contact Resistance | ≤ 10mΩ |
| Insulation Resistance | ≥ 200 MΩ(Initial) |
| Dielectric Strength | 0.5 KVdc 50HZ |
| Mechanical | |
| Lifetime | > 1,000 Mating Cycles |
| Insertion and Withdrawal Force | ≤ 60 N |
| Cable O.D. | max 8.8 mm for standard outlet max 10 mm for large outlet ( * L） |
| Wiresize | 12 AWG |
| Material | |
| Tip | Brass |
| Bushing | PA66+30%GF |
| Inner | Steel |
| Insulation | CerPVC |
| Sleeve | Brass |
| Sleeve | |
| Insulation | PA66+30%GF |
| Soldering Contact | Brass |
| Cable Clamp | Steel |
| Housing | Zinc |
| Push Ring | ABS |
| Boot | CerPVC |
| Tip | Nickel Plating |
| Sleeve | Nickel Plating |
| Sleeve | Nickel Plating |
| Housing | Nickel Plating |
| Inner | Zinc Plating |
| Soldering Contact | Tin and Cer |
| Cable Clamp | Tin and Cer |
