| Article Name | Details | Packaging |
| NYS325 |
Technical Information
| Product | |

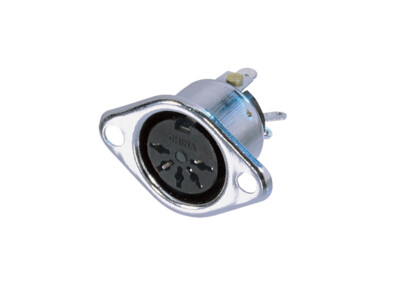

| Title | NYS325 |
| Electrical | |
| Contact Resistance | <10 mΩ |
| Insulation Resistance | >1000 MΩ(Initial) |
| Dielectric Strength | 500V dc |
| Rated Voltage | 50 VAC |
| Mechanical | |
| Insertion Force | ≤40N |
| Withdrawal Force | >5.5N |
| Lifetime | >1000 Mating Cycles |
| Material | |
| Housing | Aluminum |
| Shield | Bronze |
| Rivet | Brass |
| 5 Pin Insulator | PA6+30%GF |
| Jack | Bronze |
| Housing | Nickel Plating |
| Shield | Silver Plating |
| Jack | Silver Plating |
