Article Variations
| Article Name | Details | Packaging |

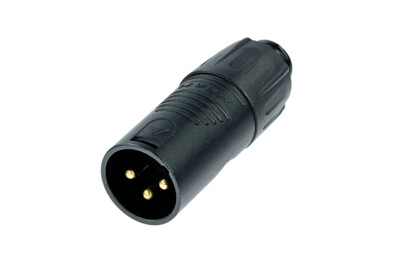

| RA3MT-B | Black plated housing, gold plated contacts | Plastic Bag |
Technical Information
| Product | |
| Title | RA3MT-B |
| Connection Type | XLR |
| Electrical | |
| Contact Resistance | ≤5 mΩ |
| Insulation Resistance | >1 GΩ |
| Dielectric Strength | >500 V rms |
| Rated current per contact | ＜5 A |
| Mechanical | |
| Lifetime | >1000 Mating Cycles |
| Wiresize | 0.22 mm² |
| Wiresize | 24 AWG |
| Material | |
| Housing | Zinc |
| Pin | Brass |
| Ground Contact | Bronze |
| Pin Holder | PA6+30%GF |
| Shell | PA6+30%GF |
| Pin | Bronze Brass |
| Pin holder | PA6+30%GF |
| Bushing | PA6+30%GF |
| Housing | Zinc |
| Housing | Black Plating |
| Housing | Black Plating |
| Pin | Gold Plating |
| Ground Contact | Tin and Cer |
