Article Variations
| Article Name | Details | Packaging |

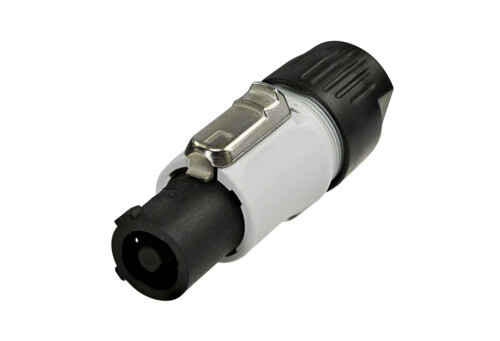

| RCAC3O-G-000-0 | Grey housing, power outlet | BULK |
| RCAC3O-G-000-1 | Grey housing, power outlet | Plastic Bag |
Technical Information
| Product | |
| Title | RCAC3O-G |
| Connection Type | Power Connectors |
| Electrical | |
| Number of contacts | 2 + PE |
| Rated current per contact | 16 A / 20 A RMS |
| Rated Voltage | 250 V / 127 V AC |
| Dielectric strength (peak) | 4 kV ac |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance (after dampheat, IEC 68-2-30) | > 1 GΩ |
| Mechanical | |
| Retention method | Twist lock |
| Cable O.D. range | 6 -15 mm |
| Wiring Cable | Screw type terminals, wire size 2.5 mm² / 12 AWG |
| Wiring Receptacle | Flat tabs for FASTON® (4.8 x 0.5 mm) or soldering |
| Material | |
| Cable connector contacts | Brass, Ag plated |
| Receptacle contacts | Bronze, Ag plated |
| Chucks | POM |
| Environmental | |
| Flammability | UL94 V-0 |
| Temperature range | -30 °C to +80 °C |
| Protection class (mated) | IP 20 |
| Safety Requirments | EN / IEC61984 |
| Solderability | complies with IEC68-2-20 |
