Article Variations
| Article Name | Details | Packaging |

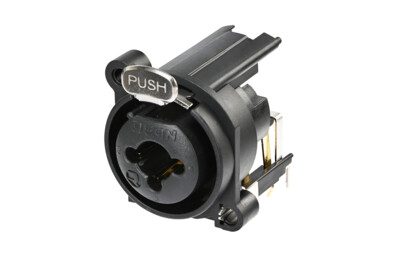

| RCJ9FA-H | Horizontal PCB contacts, locking latch | BULK |

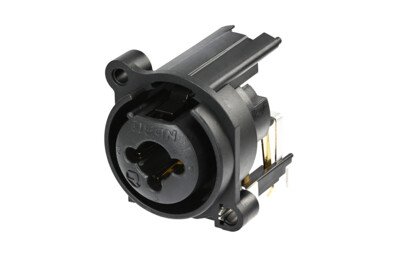

| RCJ9FA-H-0 | Horizontal PCB contacts, retention spring | BULK |

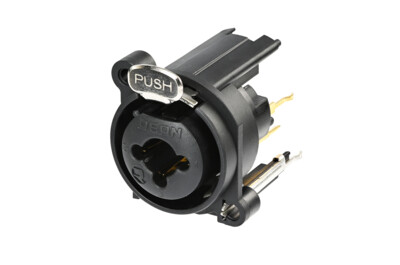

| RCJ9FA-V | Vertical PCB contacts, locking latch | BULK |

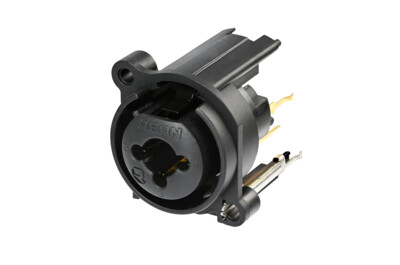

| RCJ9FA-V-0 | Vertical PCB contacts, retention spring | BULK |
Technical Information
| Product | |
| Title | RCJ9FA |
| Connection Type | XLR/Jacks Combo |
| Electrical | |
| Contact resistance - XLR | ≤ 15 mΩ |
| Contact resistance - 1/4" Jack | ≤ 25 mΩ |
| Dielectric strength | 1500 V dc |
| Insulation resistance - inital | ≥ 0.5 GΩ |
| Insulation resistance -after damp heat | ≥ 0.2 GΩ |
| Rated current per Contact - XLR | 3 A |
| Rated current per Contact - 1/4" Jack | 3 A |
| Rated voltage | 50 V ac |
| Mechanical | |
| Lifetime | > 1'000 mating cycles |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Panel thickness | max. 3 mm (0.12") |
| Wiring | PCB mount |
| Locking device | Latch look |
| Mounting direction | Rear mounting |
| Mounting screw | Self-tapping Plastite® screw with thread 2.9 x 1.06 and tri-rondular configuration |
| Material | |
| Shell | PA 6.6 30% GR |
| Contacts | CuSn6 |
| Contact plating - XLR | Au / Ag (G, TN, RN, SN) |
| Contact plating - 1/4" Jack | Au (TRS) |
| Locking latch | CK 65Mn steel |
| Environmental | |
| Flammability | UL 94 V0 |
| Operating temperature | -20°C to +70°C |
| Solderability | complies with IEC68-2-20 |
| Environmental | complies with EU RoHS 2 and REACH |
