Features and benefits
- IP65 rating provides outdoor protection under mated condition
- Chrome&Black plated with fashionable finish and better abrasion performance
- UL94 V-0 rated materials
Article Variations
| Article Name | Details | Packaging |

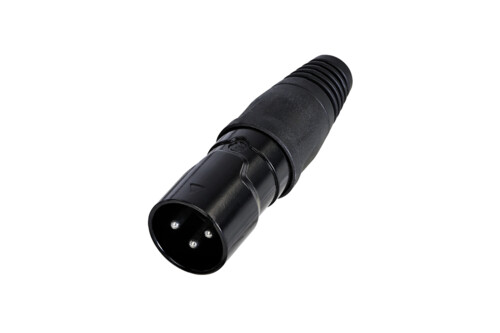

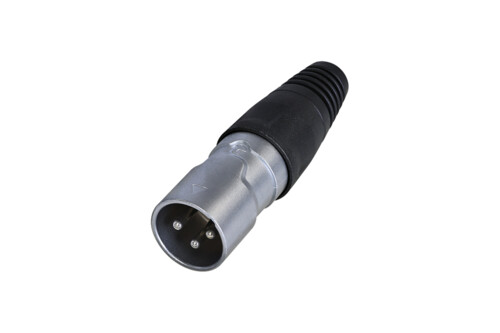

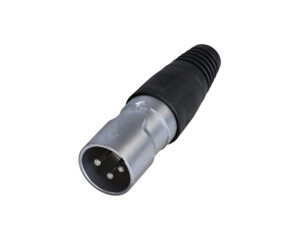

| RCX3M-Z-000-0/1 | Chrome plated housing, tin plated contacts | BULK / Plastic Bag |

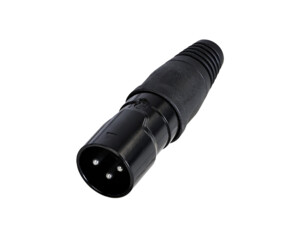

| RCX3M-Z-001-0/1 | Black plated housing, tin plated contacts | BULK / Plastic Bag |
| RCX3M-Z-002-0/1 | Black plated housing, gold plated contacts | BULK / Plastic Bag |
Technical Information
| Product | |
| Title | RCX3M-Z |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 5.0 - 8.0 mm |
| Insertion force | ≤ 60 N |
| Withdrawal force | ≤ 60 N |
| Lifetime | > 1000 cycles |
| Wiresize | Max. 1.5 mm2 |
| Wiresize | Max. 16 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
| Bushing | Polyamide |
| Contact plating | Tin (-000 & - 001) / AU (-002) |
| Contacts | Brass |
| Insert | Polyamide (UL94-V0) |
| Locking element | Zinc diecast |
| Shell | Zinc diecast |
| Shell plating | Chrome (-000) / Black (-001 & -002) |
| Strain relief | Polyamide |
| Sealing jacket | Rubber |
| Environmental | |
| Flammability | UL 94-V0 |
| Protection class | IP65 (Mated) |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +70 °C |
